Hi, I need a new burner tip/nozzle for my Minex lamp. Tried emailing a few companies, looked on eBay etc, but cannot source one.
Any help or pointers in the right direction will be greatly appreciated.

Wanna join the discussion?! Login to your AditNow Community forum account or Register a new forum account

somersetminer
50.2% (Neutral)
Newbie

9 years ago

Chuck a photo up! not familiar with that carbide light, but if you compare it with Premier and the other ones perhaps the nozzles will be similar

Morlock
50.2% (Neutral)
Newbie

9 years ago

If it's one of the 'Premier' size lamps I would suspect it will have a similar single ceramic jet?

wellingtonian
50.2% (Neutral)
Newbie Topic Starter

9 years ago

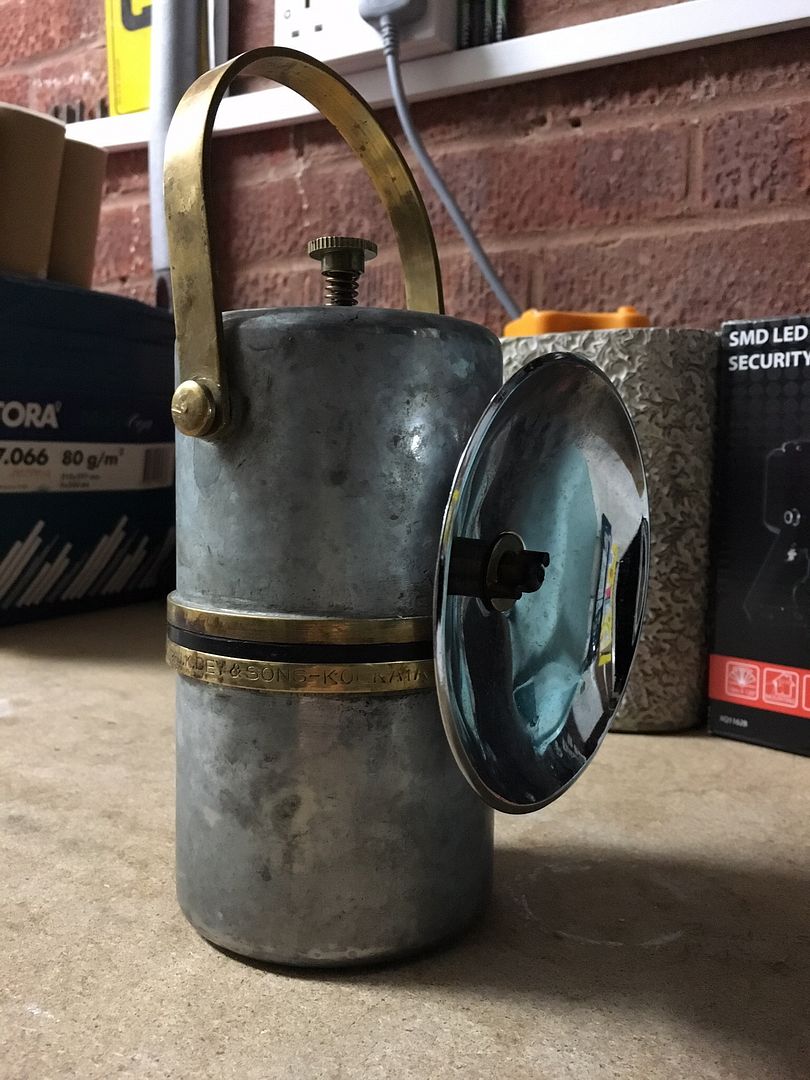

This is the lamp

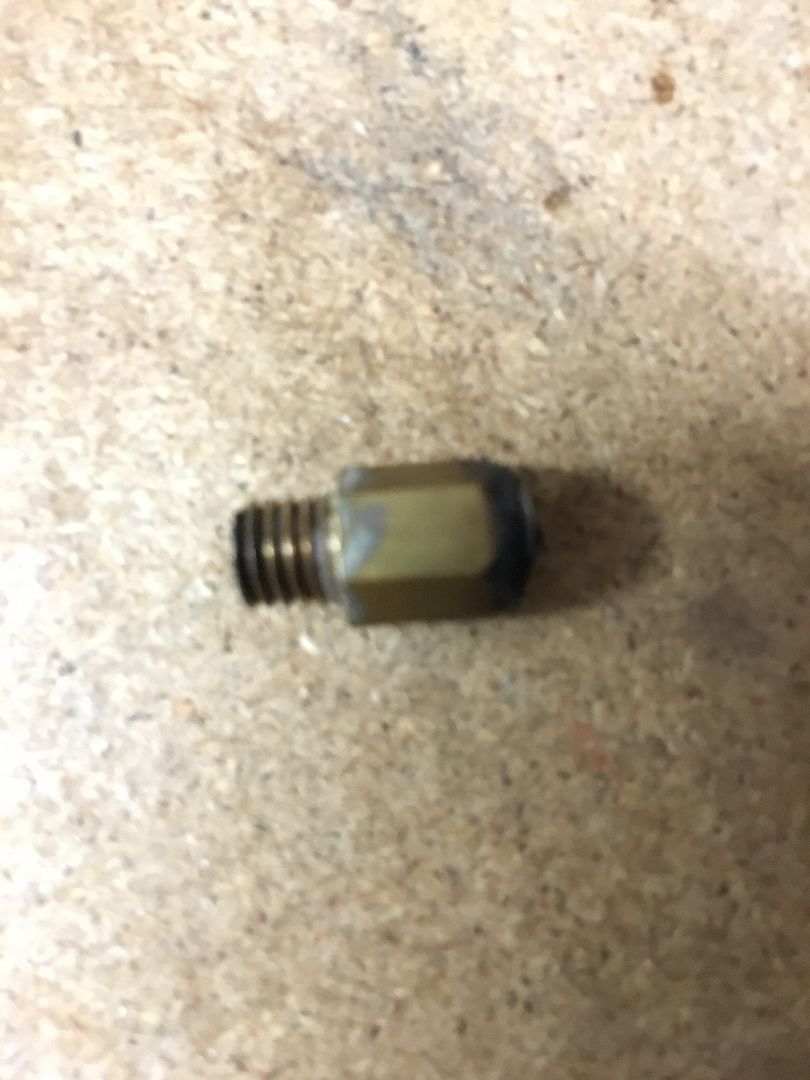

And the nozzle

Morlock
50.2% (Neutral)
Newbie

9 years ago

You may be able to taper ream the Minex threads to take a Premier type jet, failing that, turn off the front part of the Minex jet and silver solder a turned down Premier jet.

http://caves.org/member/mfraley/spare.htm

Do you know anyone with a small lathe?

Edit: Premier 7 litre jet, search under Premier.

http://www.caving-supplies.co.uk/

wellingtonian
50.2% (Neutral)
Newbie Topic Starter

9 years ago

Thanks for your reply.
Is your edit implying that the premier 7 litre jet will fit? Unfortunately I'm not able to work on the jet myself and don't know anyone with a lathe.
Cheers again.

Morlock
50.2% (Neutral)
Newbie

9 years ago

I'm not sure if the tapered Premier jet would just push in with some sort of sealant.

If you could accurately measure the outside diameter of the the thread on your jet I could compare that figure with the outside diameter of a Premier jet and advise further.

If possible measure the diameter of your thread with a vernier caliper or micrometer, failing that a steel tape.

wellingtonian
50.2% (Neutral)
Newbie Topic Starter

9 years ago

Ok, thanks again. I think I can put my hands on a vernier caliper. I'll get it measured accurately and report back.

Morlock
50.2% (Neutral)
Newbie

9 years ago

OK, the Premier jet is a taper fitting, the small end of the taper being 5.1mm and the large end 5.85mm, (near enough) so may be able to make it fit.
If possible also measure the inside diameter of the thread in the lamp
[photo]103382[/photo]

exspelio
50.2% (Neutral)
Newbie

9 years ago

#10

Have you tried vintage car parts suppliers? e.g;

https://www.vintagecarparts.co.uk/search?query=carbide+lamp

Always remember, nature is in charge, get it wrong and it is you who suffers!.

wellingtonian
50.2% (Neutral)
Newbie Topic Starter

9 years ago

#11

"exspelio" wrote:
Have you tried vintage car parts suppliers?

Thanks for the info :thumbup:
